What is a Gas Genset?
A gas genset, also referred to as an Engine Generator Set or Engine Genset, is an integrated/combined engine with a generator in a package which generates electrical power.
CHP
Systems (Cogeneration
and Trigeneration)
Plants
Have Very High Efficiencies, Low Fuel Costs & Low Emissions
The Effective Heat Rate is Approximately
4100 btu/kW & System Efficiency is 92% Plant.

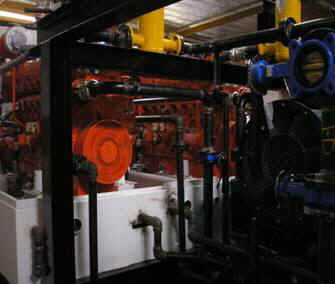

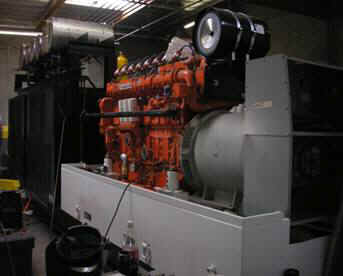

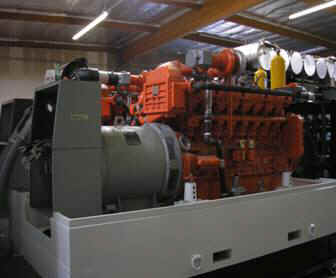

The CHP System
below is Rated at 900 kW and Features:
(2) Natural Gas Engines @ 450 kW each on one Skid with Optional
Selective Catalytic Reduction system that removes Nitrogen
Oxides to "non-detect."
Our CHP Systems may be the best solution for your company's economic and environmental sustainability as we "upgrade" natural gas to clean power with our clean power generation solutions. Our emissions abatement solutions reduce nitrogen oxides (NOx) to "non-detect" and can be installed and operated in most EPA non-attainment regions!
With Natural Gas at
$4.00/mmbtu, our Clean Power Generation
plants generate power for about $0.04 / kWh (fuel cost). With
operations & maintenance added, that's about 5 cents /kWh -
or approximately 50% - 60% less than most electric rates.
Our CHP Systems and Dispersed Generation power plants are an ideal solution for electric utilities, data centers, electric co-ops, electrical sub-stations and hospitals. Our high-efficiency CHP Systems eliminate blackouts, electric grid supply problems and significantly reduce greenhouse gas emissions and hazardous air pollutants associated with electric power generation.
For qualified clients we will design, build, finance, own, operate & maintain a new:
energy
system, through a Power
Purchase Agreement that guarantees
a minimum 10% reduction in our client's energy expenses.
(NOTE: Engineering and related interim project development
expenses may be at client's expense but will be
refunded
at the close of Power
Purchase Agreement or other project financing. Some of our
engineering
and EPC services
may be provided by one of our Top-ranked ENR Engineering
Procurement Construction partner companies.)
To receive a preliminary no-obligation review of your energy, engineering or
project plans,
send an introductory email to us at the following email address:
marketing@GasGenset.com
"Changing the Way the
World Makes and Uses Energy" sm
Austin, Texas
marketing@GasGenset.com
What is "Cogeneration"?
Did you know that 10% of our nation's electricity now comes from "cogeneration" plants?
And
because cogeneration
is so efficient, it saves its customers up to 40% on their energy expenses, and
provides even greater savings to our environment through significant reductions
in fuel usage and much lower greenhouse
gas emissions.
Cogeneration
- also known as “combined
heat and power” (CHP), cogen, district energy, total energy, and
combined cycle, is the simultaneous production of heat (usually in the form of
hot water and/or steam) and power, utilizing one primary fuel such as natural
gas, or a renewable fuel, such as Biomethane,
B100 Biodiesel,
or Synthesis Gas.
Cogeneration technology is not the latest industry buzz-word being touted as the solution to our nation's energy woes. Cogeneration is a proven technology that has been around for over 120 years!
Our nation's first commercial power plant was a cogeneration plant that was designed and built by Thomas Edison in 1882 in New York. Our nation's first commercial power plant was called the "Pearl Street Station."
What
is "Trigeneration"?
Trigeneration is the simultaneous production of three forms of energy - typically, Cooling, Heating and Power - from only one fuel input. Put another way, our trigeneration power plants produce three different types of energy for the price of one.
Trigeneration energy systems can reach overall system efficiencies of 86% to 93%. Typical "central" power plants, that do not need the heat generated from the combustion and power generation process, are only about 33% efficient.

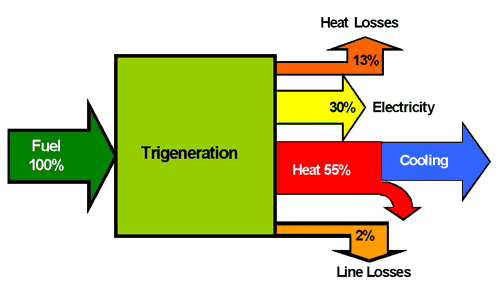

Trigeneration
Diagram & Description
Trigeneration Power Plants' Have the Highest System Efficiencies and are
About 300 % More Efficient than Typical Central Power Plants
Trigeneration
plants are installed at locations that can benefit from all three forms of
energy. These types of installations that install trigeneration
energy systems are called "onsite power generation" also referred to as
"decentralized energy."
One of our company's principal's first experience with the design and development of a trigeneration power plant was the trigeneration power plant installation at Rice University in 1987 where our trigeneration development team started out by conducting a "cogeneration" feasibility study. The EPC contractor that Rice University selected installed the trigeneration power which included a 4.0 MW Ruston gas turbine power plant, along with waste heat recovery boilers and Absorption Chillers. A "waste heat recovery boiler" captures the heat from the exhaust of the gas turbine. From there, the recovered energy was converted to chilled water - originally from (3) Hitachi Absorption Chillers - 2 were rated at 1,000 tons each, and the third Hitachi Absorption Chiller was rated at 1,500 tons. The Hitachi Absorption Chillers were replaced shortly after their installation by the EPC company. The first trigeneration plant at Rice University was so successful, they added a second 5.0 MW trigeneration plant so today, Rice University is now generating about 9.0 MW of electricity, and also producing the cooling and heating the university needs from the trigeneration plant and circulating the trigeneration energy around its campus.

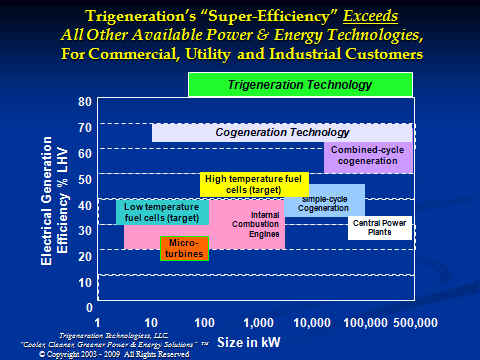

Trigeneration Chart
Trigeneration's
"Super-Efficiency" compared
with other competing technologies
As you can see, there is No Competition for Trigeneration!
Our trigeneration power plants are the ideal onsite power
and energy solution for customers that include: Data
Centers, Hospitals, Universities, Airports, Central Plants, Colleges
& Universities, Dairies, Server Farms, District Heating & Cooling
Plants,
Food Processing Plants, Golf/Country
Clubs, Government Buildings, Grocery Stores, Hotels, Manufacturing
Plants,
Nursing Homes, Office
Buildings / Campuses,
Radio Stations, Refrigerated
Warehouses,
Resorts,
Restaurants,
Schools, Server Farms, Shopping Centers, Supermarkets, Television
Stations, Theatres and Military Bases.
At about 86% to 93% net system efficiency, our trigeneration power plants are about 300% more efficient at providing energy than your current electric utility. That's because the typical electric utility's power plants are only about 33% efficient - they waste 2/3 of the fuel in generating electricity in the enormous amount of waste heat energy that they exhaust through their smokestacks.
Trigeneration is defined as the simultaneous production of three energies: Cooling, Heating and Power. Our trigeneration energy systems use the same amount of fuel in producing three energies that would normally only produce just one type of energy. This means our customers that have our trigeneration power plants have significantly lower energy expenses, and a lower carbon footprint.
Waste
Heat Recovery in Cogeneration
and
Trigeneration power and energy
systems
In most cogeneration and trigeneration power and energy systems, the exhaust gas from the electric generation equipment is ducted to a heat exchanger to recover the thermal energy in the gas. These heat exchangers are air-to-water heat exchangers, where the exhaust gas flows over some form of tube and fin heat exchange surface and the heat from the exhaust gas is transferred to make hot water or steam. The hot water or steam is then used to provide hot water or steam heating and/or to operate thermally activated equipment, such as an absorption chiller for cooling or a desiccant dehumidifer for dehumidification.
Many of the waste heat recovery technologies used in building cogeneration and trigeneration systems require hot water, some at moderate pressures of 15 to 150 psig. In the cases where additional steam or pressurized hot water is needed, it may be necessary to provide supplemental heat to the exhaust gas with a duct burner.
In some applications air-to-air heat exchangers can be used. In other instances, if the emissions from the generation equipment are low enough, such as is with many of the microturbine technologies, the hot exhaust gases can be mixed with make-up air and vented directly into the heating system for building heating.
In the majority of installations, a flapper damper or "diverter" is employed to vary flow across the heat transfer surfaces of the heat exchanger to maintain a specific design temperature of the hot water or steam generation rate.

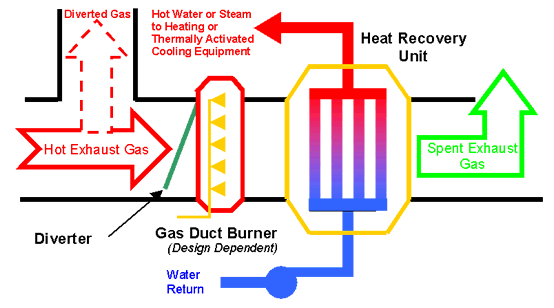

Typical
Waste Heat Recovery
Installation
In some cogeneration and
trigeneration
designs, the exhaust gases can be used to activate a
thermal wheel or a desiccant dehumidifier. Thermal wheels use the exhaust gas
to heat a wheel with a medium that absorbs the heat and then transfers the
heat when the wheel is rotated into the incoming airflow.
A professional engineer should be involved in designing and sizing of the Waste Heat Recovery section. For a proper and economical operation, the design of the heat recovery section involves consideration of many related factors, such as the thermal capacity of the exhaust gases, the exhaust flow rate, the sizing and type of heat exchanger, and the desired parameters over a various range of operating conditions of the cogeneration or trigeneration system — all of which need to be considered for proper and economical operation.
The
Market and Potential for Waste Heat
Recovery technologies and solutions
There are more than 500,000 smokestacks in the U.S. that are "wasting" heat, an untapped resource that can be converted to energy with Waste Heat Recovery technologies.
About 10% of these 500,000 smokestacks represent about 75% of the available wasted heat which has a stack gas exit temperature above 500 degrees F. which could generate approximately 50,000 megawatts of electricity annually and an annual market of over $75 billion in gross revenues before tax incentives and greenhouse gas emissions credits.
Waste Heat Recovery technologies represent the least cost solution which provides the greatest return on investment, than any other possible green energy technology or "carbon free energy" opportunity!
What is "Decentralized Energy"?
Decentralized Energy is the opposite of "centralized energy."
Decentralized Energy energy generates the power and energy that a residential, commercial or industrial customer needs, onsite. Examples of decentralized energy production are natural gas fueled CHP Systems, Rooftop PV and solar cogeneration energy systems.
Today's electric utility industry was "born" in the 1930's, when fossil fuel prices were cheap, and the cost of wheeling the electricity via transmission power lines, was also cheap. "Central" power plants could be located hundreds of miles from the load centers, or cities, where the electricity was needed. These extreme inefficiencies and cheap fossil fuel prices have added a considerable economic and environmental burden to the consumers and the planet.
Centralized energy is found in the form of electric utility companies that generate power from "central" power plants. Central power plants are highly inefficient, averaging only 33% net system efficiency. This means that the power coming to your home or business - including the line losses and transmission inefficiencies of moving the power - has lost 75% to as much as 80% energy it started with at the "central" power plant. These losses and inefficiencies translate into significantly increased energy expenses by the residential and commercial consumers.
Decentralized Energy
is the Best Way to Generate Clean and Green Energy!
How we make and distribute electricity is changing!
The electric power generation, transmission and distribution system (the electric "grid") is changing and evolving from the electric grid of the 19th and 20th centuries, which was inefficient, highly-polluting, very expensive and “dumb.”

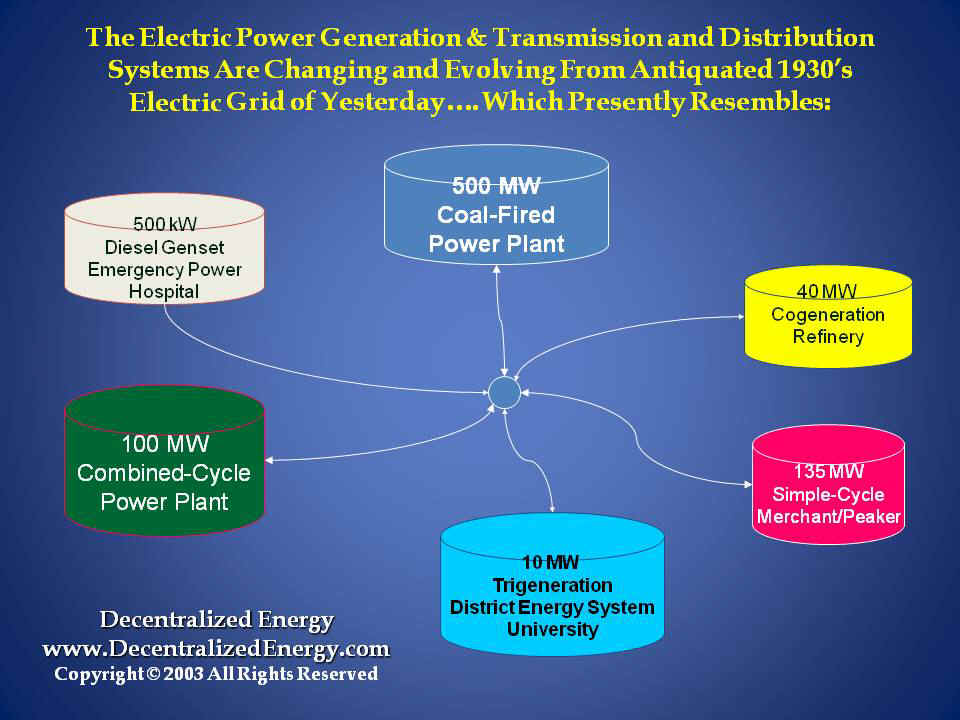

The "old" way of generating and distributing energy resembles this slide:

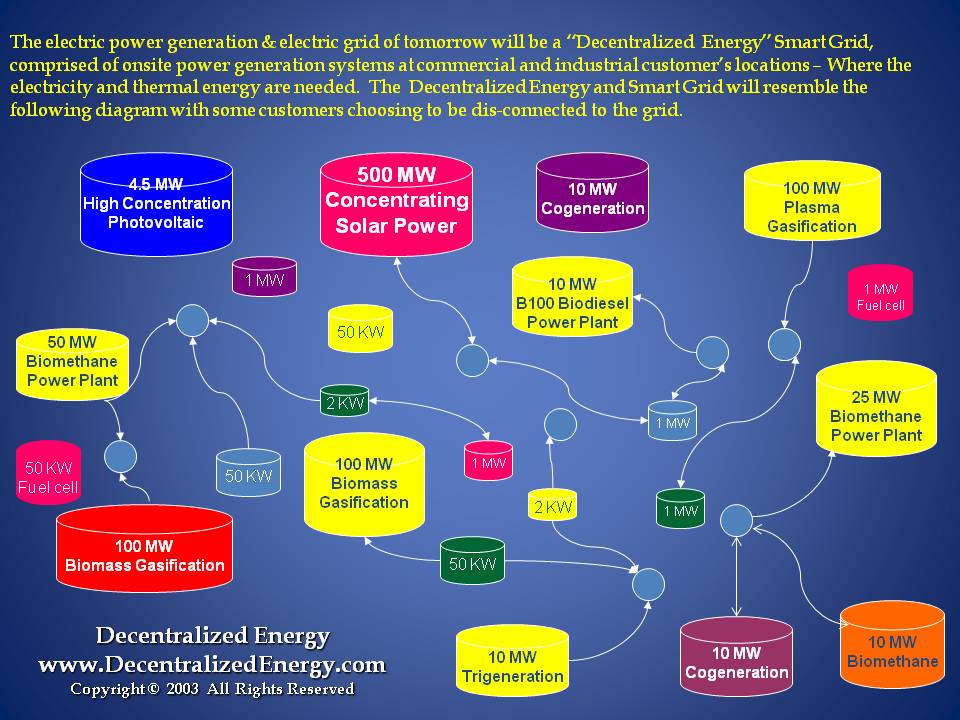

The electric grid of the 21st century (see slide below) will be Decentralized, Smart, Efficient and provide "carbon free energy" and "pollution free power” to customers who remain on the electric grid. Some customers will choose to dis-connect from the grid entirely. (Electric grid represented by the small light blue circles in the slide below.)
Typical "central" power plants and the electric utility companies that own them will either be shut-down, closed or go out of business due to one or more of the following: failed business model, inordinate expenses related to central power plants that are inefficient, excessive pollution/emissions, high costs, continued reliance on the use of fossil fuels to generate energy, and the failure to provide efficient, carbon free energy and pollution free power.
Carbon free energy and pollution free power can also reduce our dependence on foreign oil while making us "energy independent" and reducing or eliminating Greenhouse Gas Emissions.
* Some of the above information from the Department of Energy website with permission.
